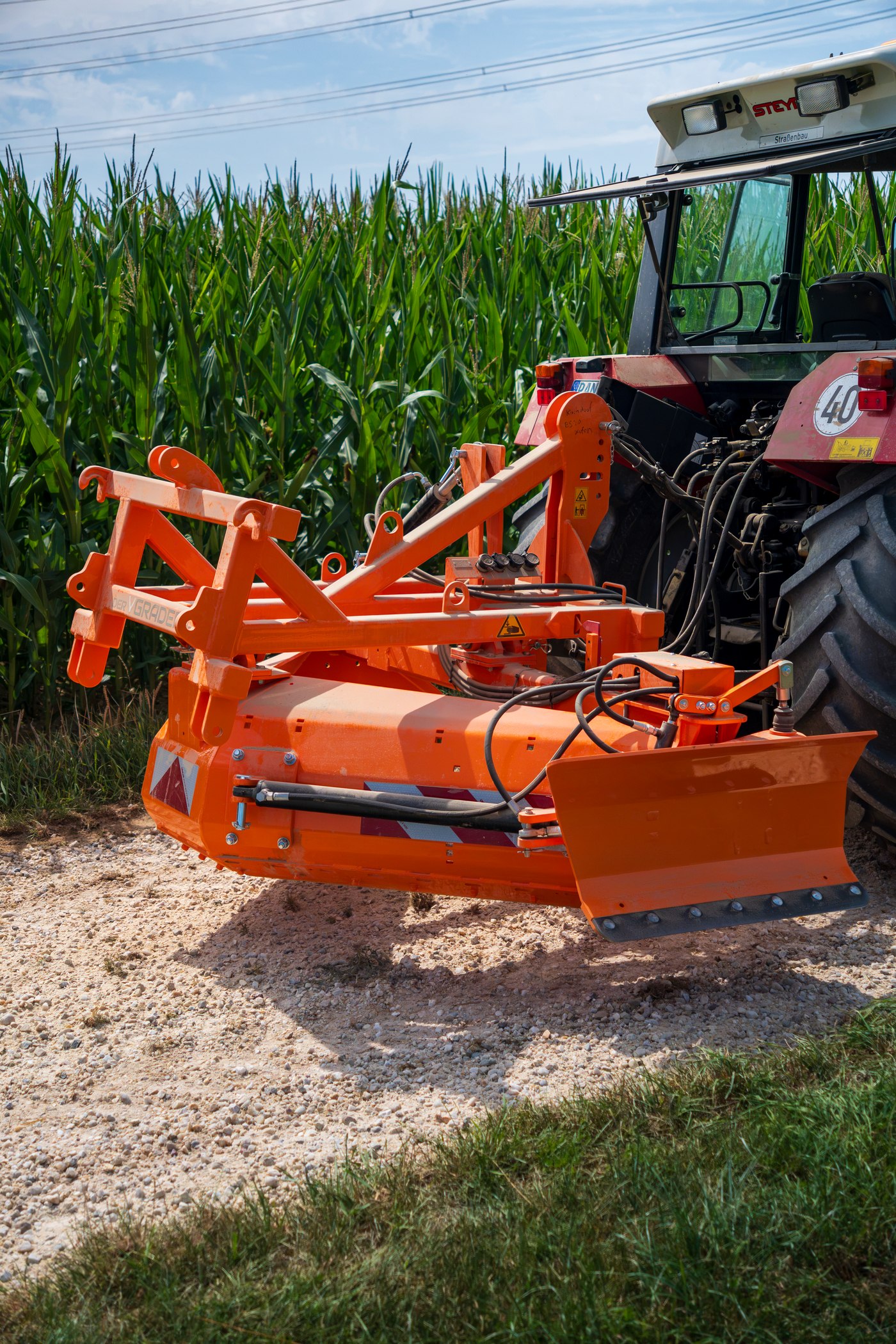

The proven predecessor model — tested in real-world use for years. Still available for anyone who wants the original.
Request advice
A proven format for classic use on field and gravel tracks.
Centred three-point hitch — straightforward and robust.
Several hundred users already rely on this field-proven solution.
The 230K isn't a development of the 205K — it's a completely new construction. Here you can see in detail what has changed.
| Area | 205 K · 1.0 (this model) | 230 K · 2.0 new |
|---|---|---|
| Hitch (3-point) | Fixed, centre only | Flexible: centred or offset 15 cm — to the left or right |
| Hitch mount | Standard steel | Hardox 500 — high-strength and wear-resistant |
| View of the grader | Obstructed view | Open centre section — clear view from the driver's seat |
| Force transfer to the blade | Material fatigue | Completely redesigned — smooth and stable |
| Tilt adjustment | 1 cylinder | 2 cylinders, widely spaced, adjustable up to 20° |
| Cylinder protection | Cylinders exposed | The tilt indicator also protects the cylinders from flying stones |
| Tilt joint | Standard 50 mm bolt | Grease-filled bolt, O-ring sealed, with grease reservoir |
| Tilt indicator | Too small, hard to read | Large and right in the driver's field of view |
| Working width | 2.05 m | 2.30 m — suited to wider tractors |
| Rear Euro mount | Permanently fitted | Removable, attachable and adjustable |
| Euro mount position | Positioned too high | Positioned lower, matched to the lower links |
| Skid mount | Standard | Reinforced version |
| Lighting | Bolt-on, less stable | Mountable lighting system — fully integrated |
| Guide plates | None | New — two-thirds less material for the full width |
| Verge blade | Clears outward only | Moves material both outward and inward |
| Verge blade joint | Standard 50 mm bolt | Grease-filled bolt with O-ring sleeve and grease reservoir |
| Verge blade position | Further back on the grader | At the very front, close to the rear axle — accurate, safe tractor handling |
| Offset frame | Bringing in the verge needs an offset frame | No longer needed — the Bankettschild 2.0 does this on its own |
The 205K remains a solid, proven machine — but the 230K addresses practically every one of its weak points: more robust material, more working width, better visibility, less maintenance.
